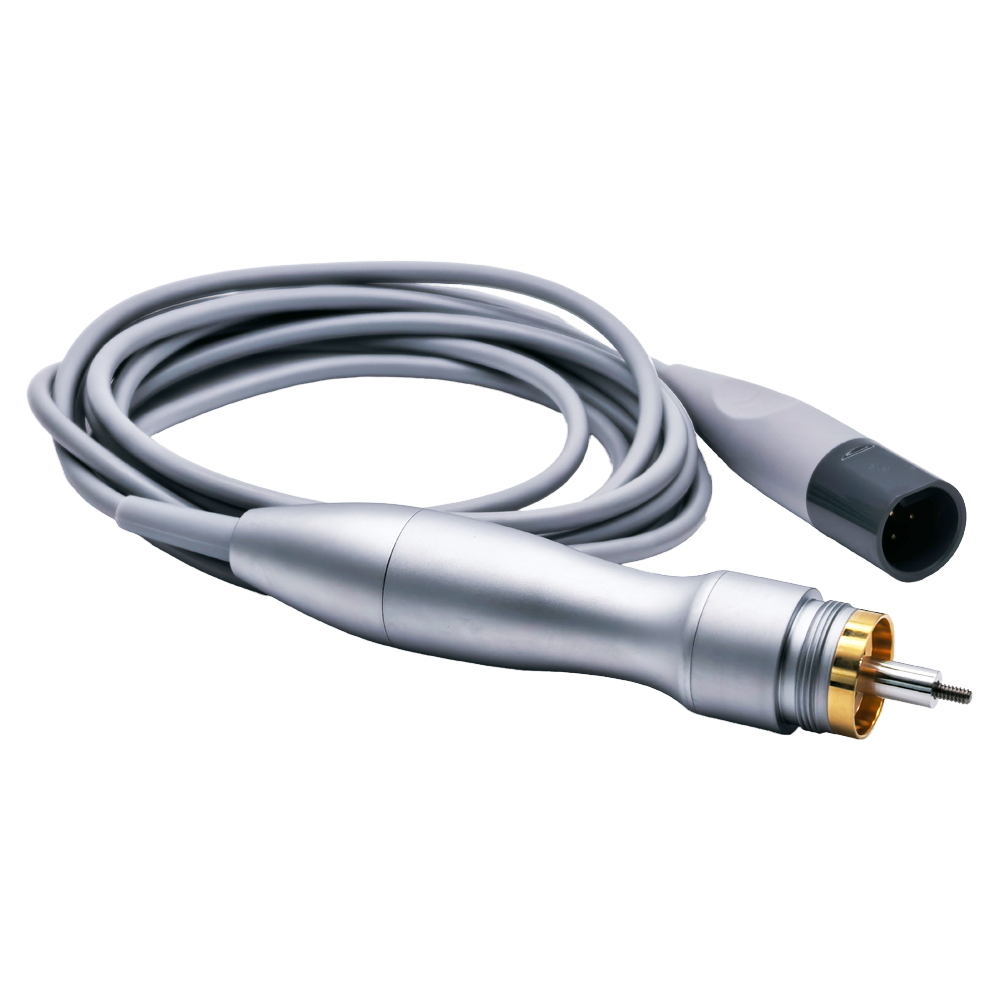

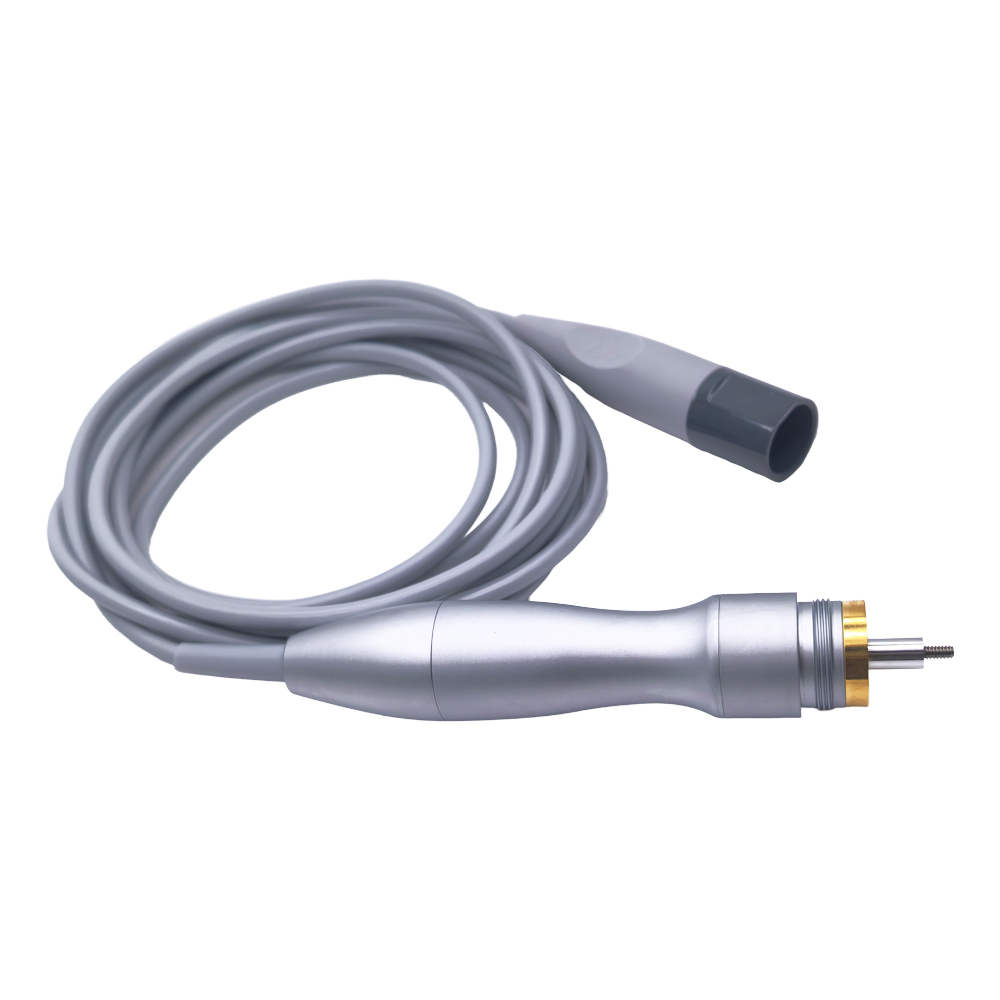

Advantages of our Ultrasonic Handpiece/Transducer Used For Pistol Type Scalpel:
1. Precision Thermal Control (<1 mm Spread): The pistol-type ultrasonic transducer delivers focused mechanical energy at 55,500 Hz, enabling precise tissue dissection with thermal spread limited to under 1 mm. This minimizes collateral damage to adjacent nerves, ducts, and vasculature—critical in laparoscopic cholecystectomies and prostatectomies—while ensuring reliable hemostasis of vessels up to 5 mm in diameter without reliance on electrical current.
2. Adaptive Energy Modulation Technology: Leveraging real-time tissue impedance feedback, the handpiece dynamically adjusts power output to match tissue density. This self-regulating system prevents overcoagulation in fatty tissue and underactivation in fibrous structures, enhancing procedural consistency and reducing surgeon intervention.
3. Ergonomic Pistol-Grip Design for Reduced Fatigue: Engineered with balanced weight distribution and low-vibration housing, the pistol grip mimics natural hand positioning, reducing muscle strain during prolonged procedures. The intuitive trigger mechanism allows seamless transition between cutting and coagulation modes, improving control in confined anatomical spaces like the retroperitoneum or pelvis.
4. Smoke-Free Operation with Enhanced Visualization: Unlike electrosurgical devices, the ultrasonic transducer generates no surgical smoke or aerosolized byproducts. This maintains a clear, unobstructed surgical field throughout the procedure, reducing the need for frequent suction or instrument swaps—particularly advantageous in dense, vascular environments such as liver resections.
5. Sealed Transducer Housing for Reliability in Wet Fields: The internal piezoelectric stack is fully encapsulated in a hermetic titanium alloy casing, preventing fluid ingress during irrigation or suction. This ensures stable energy transmission even in blood-soaked fields, maintaining performance integrity throughout complex, multi-hour surgeries.
Here are six specific application scenarios of Ultrasonic Handpiece/Transducer Used For Pistol Type Scalpel:
1. Thyroid Surgery: The pistol-type ultrasonic handpiece enables precise dissection of the thyroid gland with minimal thermal spread (<1 mm), preserving recurrent laryngeal nerves and parathyroid glands. Its ability to simultaneously cut and coagulate vessels up to 5 mm reduces bleeding and eliminates the need for ligatures, shortening operative time and improving safety in both open and minimally invasive approaches.
2. Laparoscopic Cholecystectomy: In gallbladder removal, this device efficiently dissects the cystic duct and artery while providing immediate hemostasis. Its smoke-free operation enhances visualization in the confined retroperitoneal space, reducing the need for suction and minimizing procedural interruptions.
3. Liver Resection: For hepatic parenchymal transection, the handpiece allows controlled division of liver tissue while sealing small to medium-sized vessels (up to 5 mm) without damaging bile ducts or major hepatic veins. It is particularly valuable during Pringle maneuver-assisted resections, where precise hemostasis reduces blood loss and transfusion requirements.
4. Gynecologic Oncology (Radical Hysterectomy): In cervical cancer surgery, the pistol-type ultrasonic scalpel facilitates nerve-sparing dissection and lymph node clearance with significantly reduced intraoperative blood loss. Its precision minimizes collateral damage to ureters and pelvic vasculature, improving postoperative urinary and bowel function outcomes.
5. Microvascular and Free Flap Harvest: The device is used to dissect and seal small vessels (1–3 mm) during microvascular free flap procedures in head and neck reconstruction. It reduces operative time and improves flap survival by minimizing thermal injury to adjacent tissues, outperforming traditional clamp-and-tie techniques in vessel integrity.
6. Minimally Invasive Head and Neck Tumor Resection: For tumors of the oral cavity, pharynx, or larynx, the handpiece enables bloodless dissection through small incisions or transoral approaches. Its low thermal spread protects critical structures like the carotid artery and cranial nerves, making it ideal for oncologic resections requiring functional preservation.
Ultrasonic Handpiece/Transducer Used For Pistol Type Scalpel Operation Guide:
1. Power On & Calibration: Activate the generator and allow 3–5 seconds for automatic calibration. Ensure the handpiece is securely connected—audible confirmation tone indicates readiness.
2. Grip & Trigger Control: Hold the pistol grip naturally; apply light pressure to the trigger for cutting, release slightly for coagulation. Avoid excessive force—energy is delivered via vibration, not pressure.
3. Tissue Interaction: Gently touch the blade to tissue; let ultrasonic energy do the work. Maintain steady, linear motion for clean transection. Never clamp or crush tissue.
4. Post-Use Protocol: Depress the safety lock after use, detach the disposable tip, and discard immediately. No cleaning or sterilization required—ensures consistent performance and reduces cross-contamination risk.
1. Q: Has your product obtained medical device certification?
A: Yes, our laparoscopic instruments have obtained certification from the National Medical Products Administration (NMPA) of China, as well as international qualifications such as CE and ISO13485 certificates, ensuring safety and compliance.
2. Q: How do you ensure the quality of Disposable Laparoscopic Bladed Trocar?
A: The product is manufactured using high-precision processes and undergoes strict testing before leaving the factory, meeting standards for sterility and biocompatibility to ensure surgical safety.
3. Q: What is the warranty period for your products?
A: All products come with a one-year warranty. Non-human-caused damages can be repaired or replaced free of charge. Please contact customer service to register for handling.
4. Q: Do you support customized instrument development?
A: Yes, we can customize instruments with special specifications according to hospital needs and provide OEM/ODM cooperation solutions. Please consult for details.
